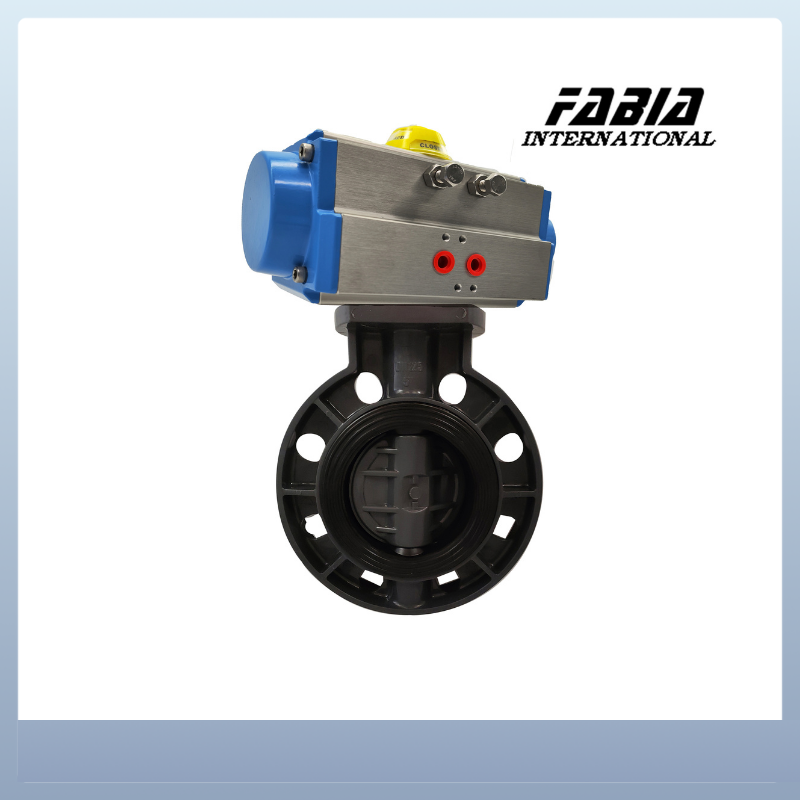

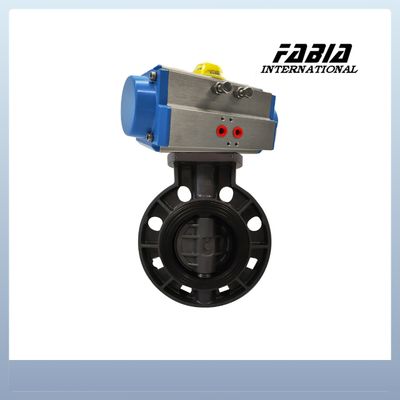

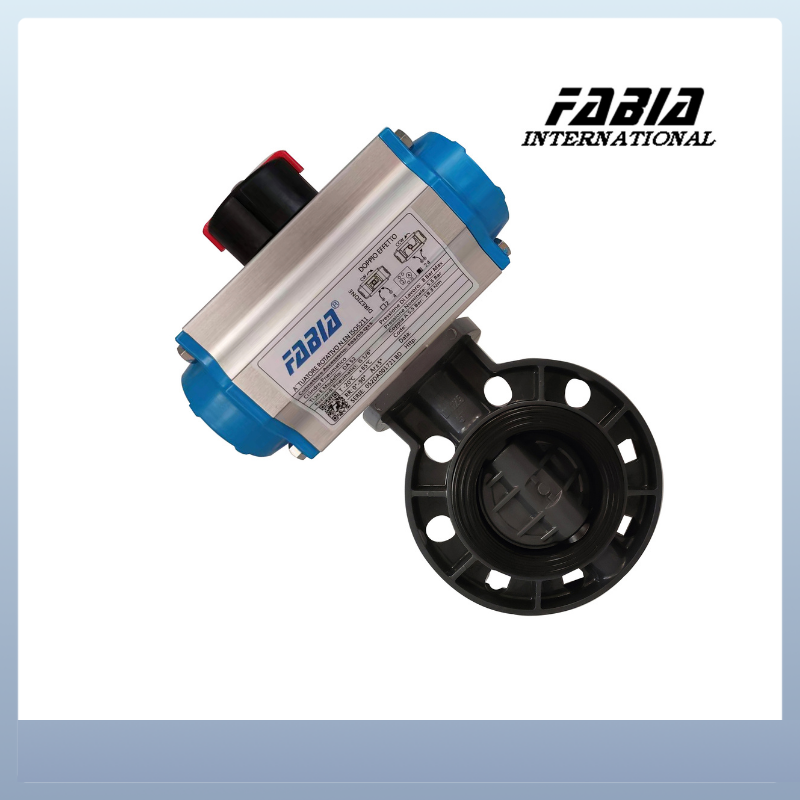

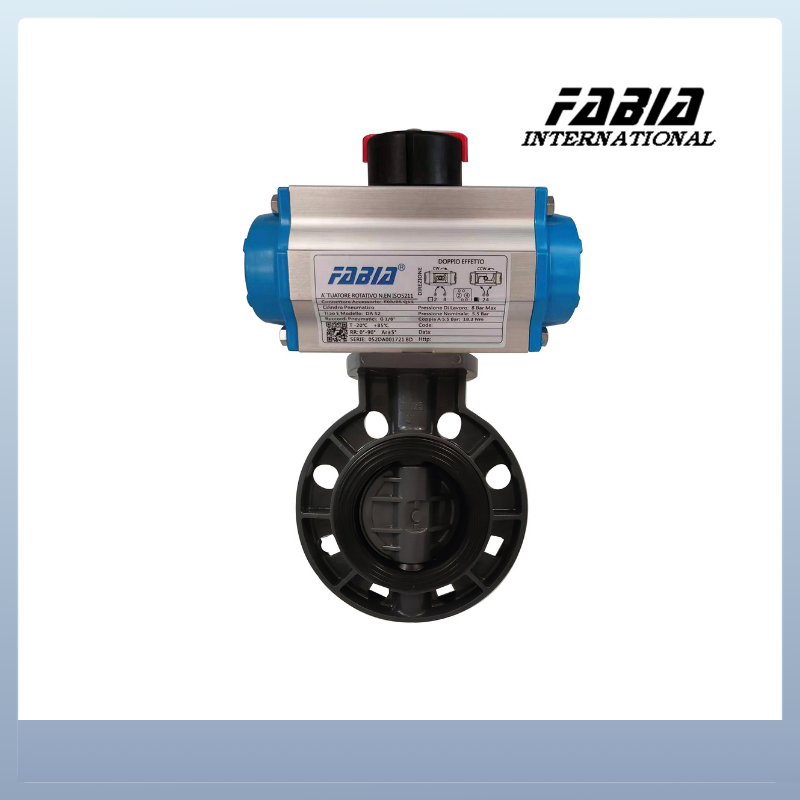

Pneumatic Soft Seal Butterfly Valve Clamp PVC Valve Lightweight and Cost-Effective

  • Pneumatic Soft Seal Butterfly Valve Clamp PVC Valve Lightweight and Cost-Effective
  • Pneumatic Soft Seal Butterfly Valve Clamp PVC Valve Lightweight and Cost-Effective
  • Pneumatic Soft Seal Butterfly Valve Clamp PVC Valve Lightweight and Cost-Effective
  • Pneumatic Soft Seal Butterfly Valve Clamp PVC Valve Lightweight and Cost-Effective
  • Pneumatic Soft Seal Butterfly Valve Clamp PVC Valve Lightweight and Cost-Effective
Lieu d'origine CHINE
Nom de marque FABIA
Certification ISO9001,CE,CCS,DNV
Numéro de modèle 1/8 pouce ～ 36 pouces
Documents Brochure du produit PDF
Quantité de commande min 1 set
Prix Négociable
Détails d'emballage Cartons / caisses en bois
Délai de livraison 15-30 jours de travail
Conditions de paiement L / C, D / A, D / P, T / T, Moneygram, Western Union
Capacité d'approvisionnement 100-1000 set par semaine

Contactez-moi pour des échantillons gratuits et des coupons.

WhatsApp:0086 18588475571

Je suis sur WeChat.: 0086 18588475571

Skype est là.: sales10@aixton.com

Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.

x
Détails sur le produit
Nom de produit Valve à papillon à pince pneumatique Type de soupape Papillon pneumatique
Matériau de soupape PVC Appareil d'actionnement de soupape Pneumatique
Connexion de soupape Serrer Joint de soupape EPDM
Disque de valve PVC Pression de soupape PN16
Température de la valve -30℃~+135℃
Laisser un message
Description de produit

FABIA Soft Seal Pneumatic Clamp Butterfly Valve



1. Description:



Used in petroleum, chemical, light industry, pharmaceutical, paper, automobile and other industrial automatic control system for remote centralized control or local control equipment.



Can be widely used in petroleum, chemical, light industry, pharmaceutical, paper, automobile and other industrial automatic control system for remote centralized control or local control.



2. Specification:



FABIA Valve Parameter List
Valve type: Soft Seal Pneumatic Clamp Butterfly Valve
Size: 2 inch ～ 36 inch
Material: WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410
Connection type: Butt Clamp/Flange Connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN0.1～PN16
Temperature: -40℃～1000℃
Model: FB-D..........



3. Features:



  • Pneumatic butterfly valve, is in the introduction of foreign advanced technology on the basis of special design, carefully manufactured products.
  • Butterfly valve with travel limit switch, solenoid valve, triplet and 0.4-0.7MPa air source can realize switching operation, and send two pairs of passive contact signals to indicate the switch of the valve.
  • Using intelligent control and positioning, with domestic electrical valve positioner, input 4-20mADC signal and 0.4-0.7MPa air source can achieve intelligent control, to achieve the adjustment of pressure, flow, temperature, liquid level and other parameters.
  • Powered by compressed air, and the valve stem drives the spool to rotate 90 ° C in the valve body, which can realize the fully open - fully closed action.
  • Product is divided into metal seal and soft seal according to its sealing performance.
  • Advantages of compact structure, small size, reliable operation, good sealing, easy maintenance, convenient installation and strong adaptability.





Pneumatic Soft Seal Butterfly Valve Clamp PVC Valve Lightweight and Cost-Effective 0

Pneumatic Soft Seal Butterfly Valve Clamp PVC Valve Lightweight and Cost-Effective 1
