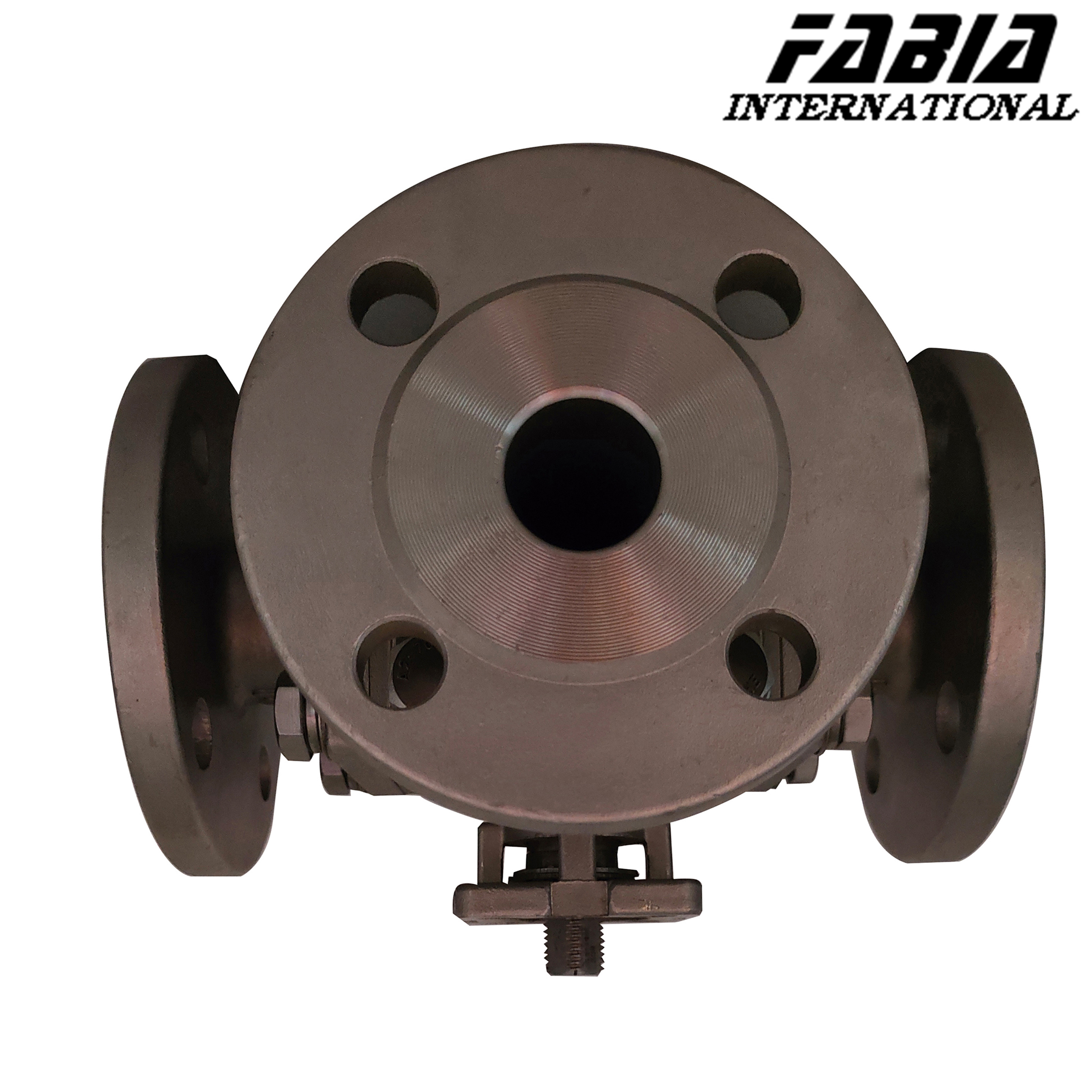

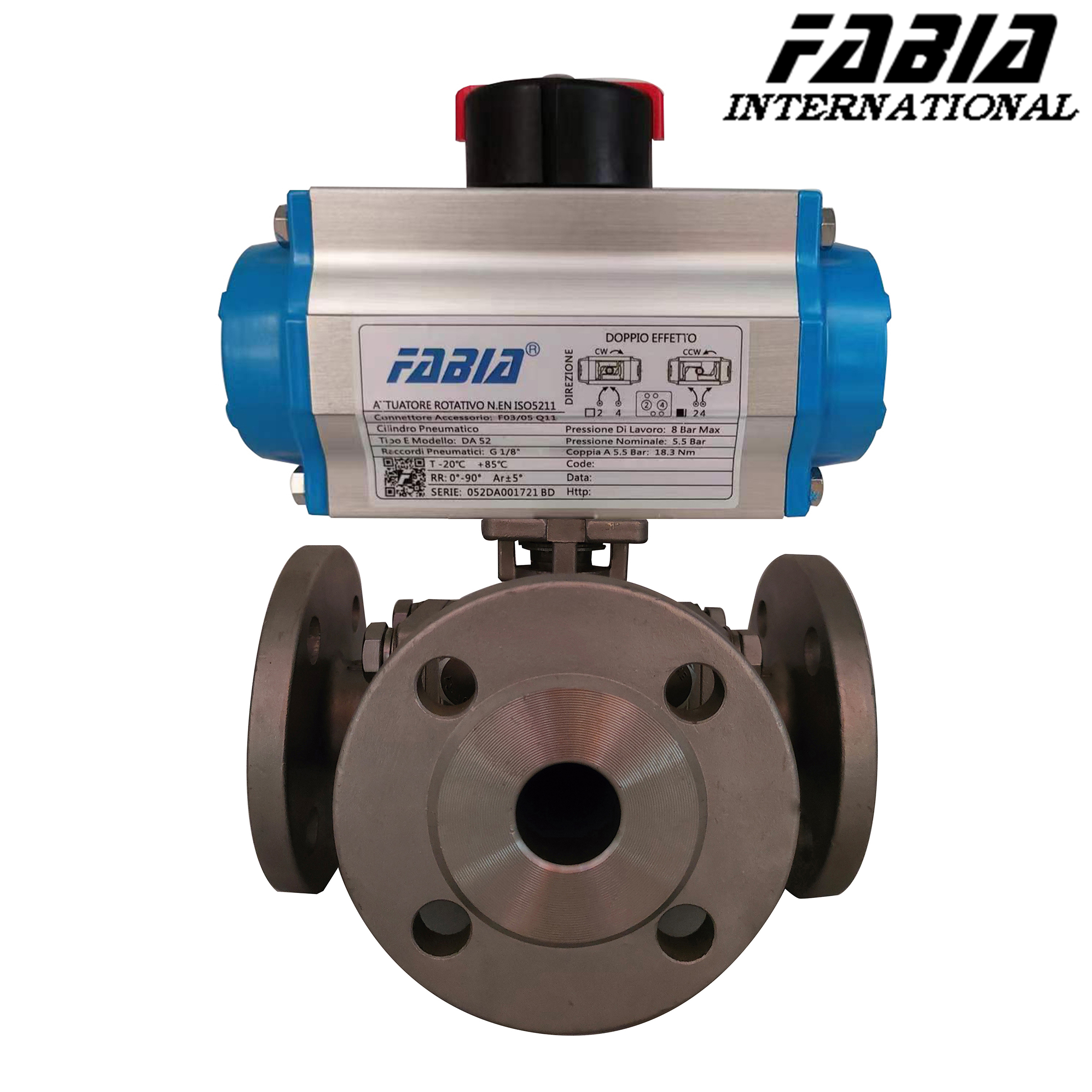

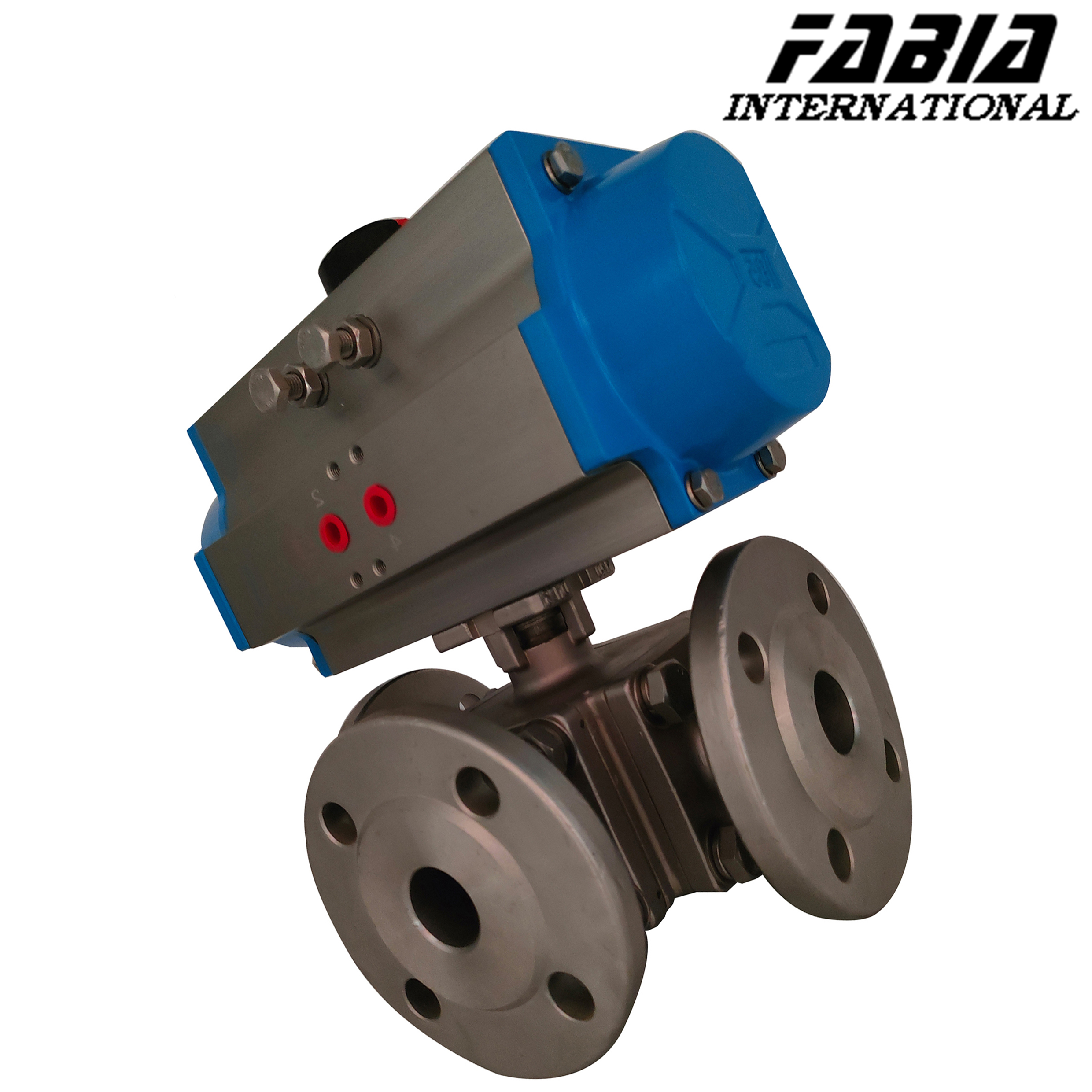

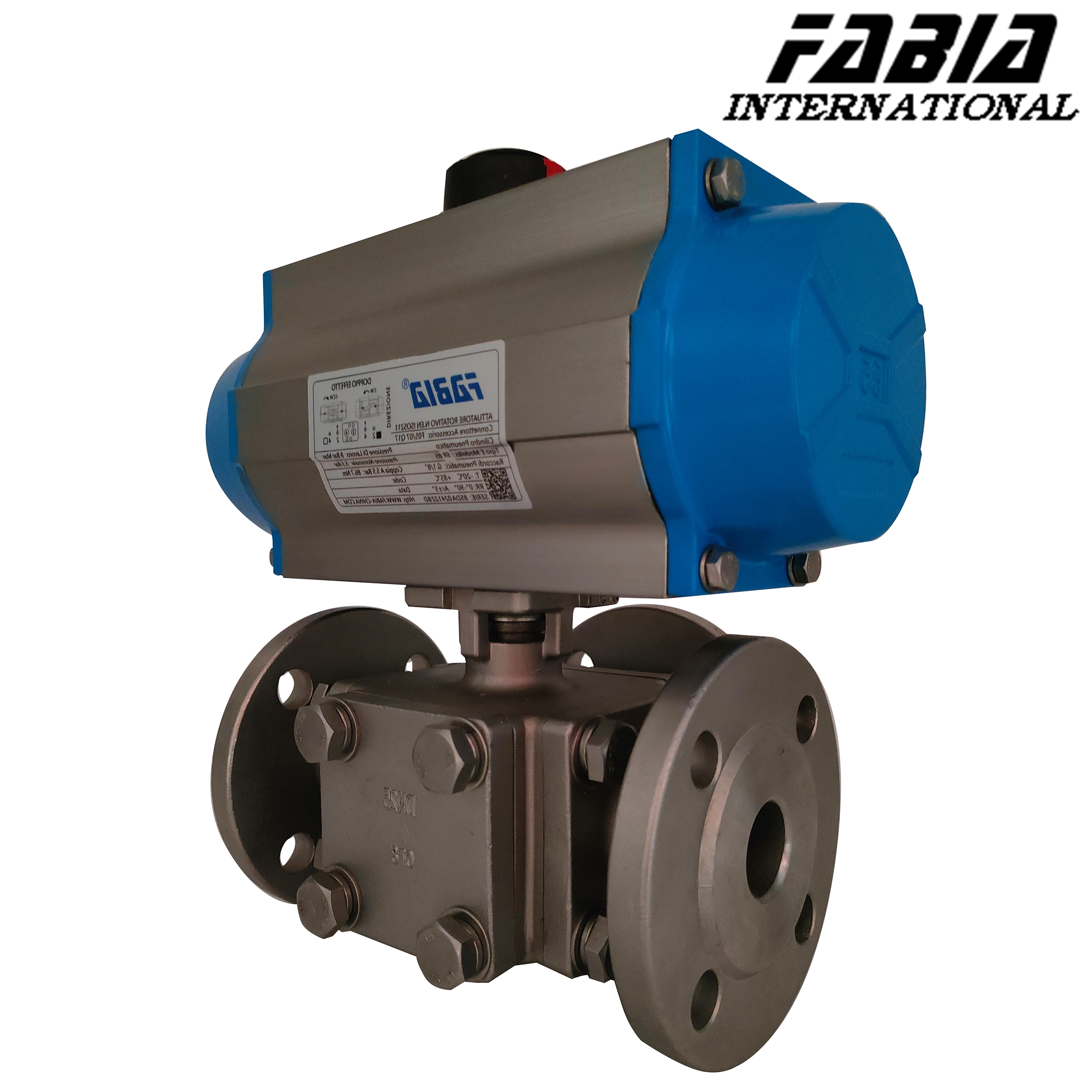

Pneumatic three-way flange Ball Valve For Chemical, Petroleum, Electric Power

  • Pneumatic three-way flange Ball Valve For Chemical, Petroleum, Electric Power
  • Pneumatic three-way flange Ball Valve For Chemical, Petroleum, Electric Power
  • Pneumatic three-way flange Ball Valve For Chemical, Petroleum, Electric Power
  • Pneumatic three-way flange Ball Valve For Chemical, Petroleum, Electric Power
  • Pneumatic three-way flange Ball Valve For Chemical, Petroleum, Electric Power
Lieu d'origine CHINE
Nom de marque FABIA
Certification ISO9001,CE,CCS,DNV
Numéro de modèle 1/8 pouce ～ 36 pouces
Documents Brochure du produit PDF
Quantité de commande min 1 set
Prix Négociable
Détails d'emballage Cartons / caisses en bois
Délai de livraison 15-30 jours de travail
Conditions de paiement L / C, D / A, D / P, T / T, Moneygram, Western Union
Capacité d'approvisionnement 100-1000 set par semaine

Contactez-moi pour des échantillons gratuits et des coupons.

WhatsApp:0086 18588475571

Je suis sur WeChat.: 0086 18588475571

Skype est là.: sales10@aixton.com

Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.

x
Détails sur le produit
Nom de produit Valve à bille pneumatique à trois voies Type de soupape Valve à bille pneumatique
Matériel acier inoxydable Opération Pneumatique
Connexion Enfilé Pression 150-600 psi
Actuateur Actionneur pneumatique Siège Ptfe
Température -30°C à +150°C Connexion finale Enfilé
Laisser un message
Description de produit

FABIA Pneumatic Ball Valve For Chemical, Petroleum, Electric Power



1.  Description:



Pneumatic three-way ball valve, widely used in chemical, petroleum, power, food, medicine, refrigeration, aviation, aerospace and other industrial fields.



Three-way ball valve, for medium diversion, confluence, flow direction switching, any pipe can be used as an entrance or exit.



Pneumatic three-way ball valve is divided into pneumatic three-way L-type ball valve and pneumatic three-way T-type ball valve, which can meet different production process requirements.



2.Specification:



FABIA Valve Parameter List
Valve type: Pneumatic Ball Valve For Chemical, Petroleum, Electric Power
Size: 1/8 inch ～ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type: Welded connection/flange connection/thread connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature: -196℃～540℃
Model: FB-Q..........



3. Features:



  • The fluid resistance is small, and its resistance coefficient is equal to that of the pipe segment of the same length.
  •  Simple structure, small size and light weight.
  • Tight and reliable, the sealing surface material of the ball valve is widely used in plastic, good sealing, and has also been widely used in vacuum systems.
  •  Easy to operate, open and close quickly, from full open to full close as long as the rotation is easy to control at a distance.
  •  When fully open or fully closed, the sealing surface of the ball and the seat is isolated from the medium, and the medium will not cause the erosion of the sealing surface of the pneumatic three-way ball valve when it is passed.

Pneumatic three-way flange Ball Valve For Chemical, Petroleum, Electric Power 0

Pneumatic three-way flange Ball Valve For Chemical, Petroleum, Electric Power 1
